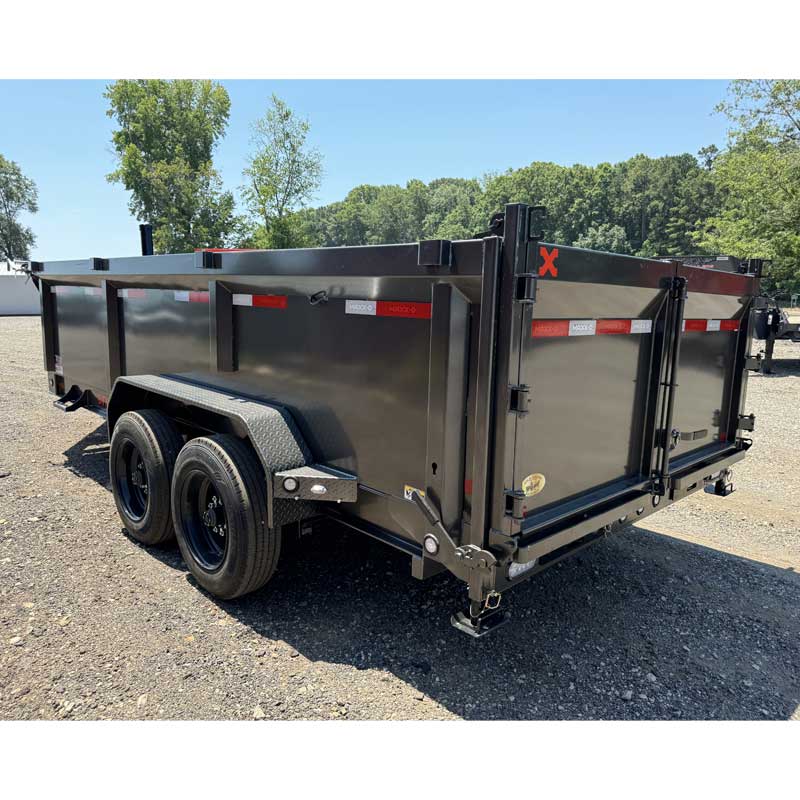

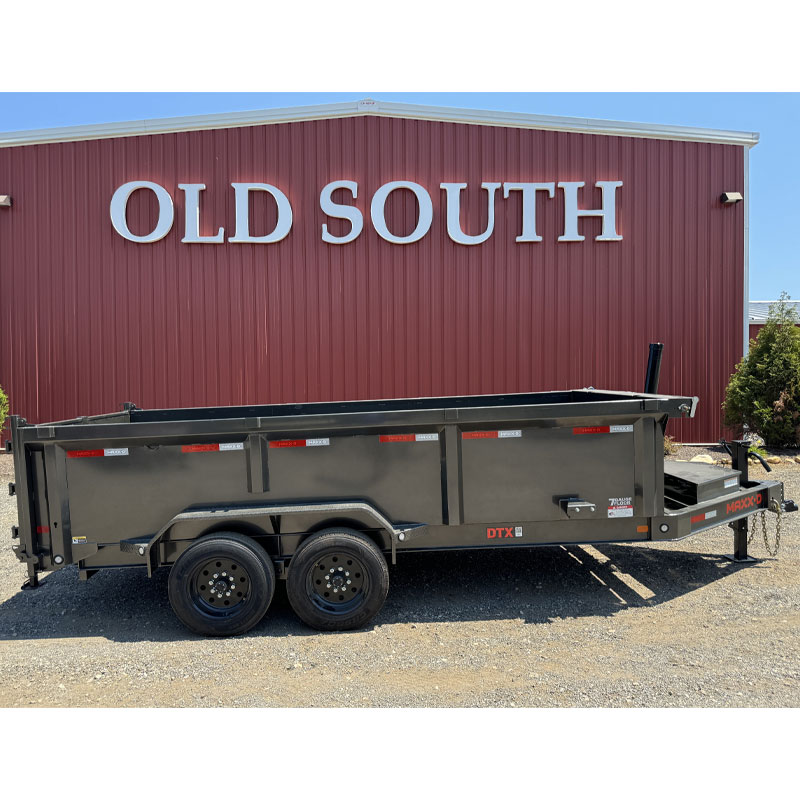

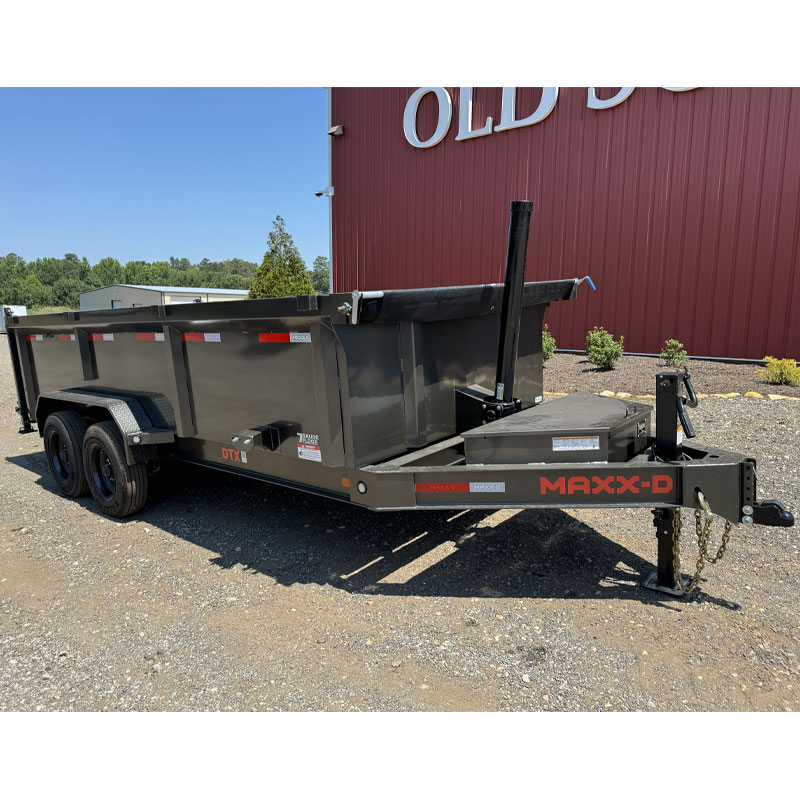

2026 Maxx-D DTX8316 17.5K Telescopic Dump Trailer – 3′ Sides, Gray, Wireless Remote [Unit B]

Maxx-D Trailers DTX8316-17.5k Telescopic Lift 7×16 Dump Trailer with 3′ sides

The DTX is a durable but simple dump trailer that you can haul with a 3/4ton or heavier truck. With an 8 I-beam frame, the DTX features a heavy duty direct-push telescoping cylinder up front, which gives this dump massive dumping leverage. The direct-push cylinder design puts less stress on the trailer, and easier tilting of the dump bed.

GVWR 17,500 lbs Empty Weight 5,840 lbs Cargo Capacity 11,660 lbs

Upgraded Features

• 3′ Solid Sides
• 8k Electric Brake Axles
• ST215/75R17.5 Load Range J Radial Tires
• Spare Tire Included

Standard Features

• 7′ Slide-in Ramps
• Pull Back Tarp System

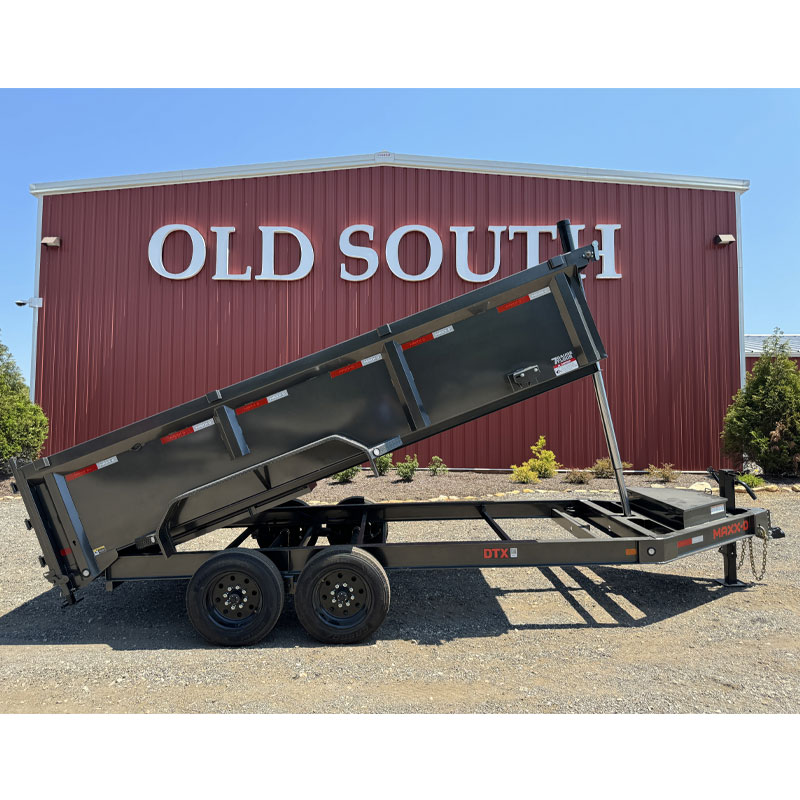

• Telescopic Lift Hoist (Power up / Gravity down)
• 16,000 LB GVWR (can be uprated to 17,500 lbs)
• 2 5/16″ Adjustable Coupler
• 1-10K Drop-Leg Jack
• I-Beam Tongue with Oversized Toolbox
• 3 Channel Crossmembers on 12 Centers
• 2-7K Electric Brake Axles
• Slipper Spring Suspension
• ST235/80R16 Load Range E Radial Tires
• Double Broke Diamond Plate Fenders
• Flushmount LED Lights
• Spare Tire Holder
• On-Board Battery Charger
• Powder Coated Finish
• 10 Gauge Steel Sides & Bed
• Split Barn Doors and Spreader Gate Combo
• Built for Big Jobs

Want to spec the right dump trailer to get your job done? We’ll size axles and options to your fleet.
