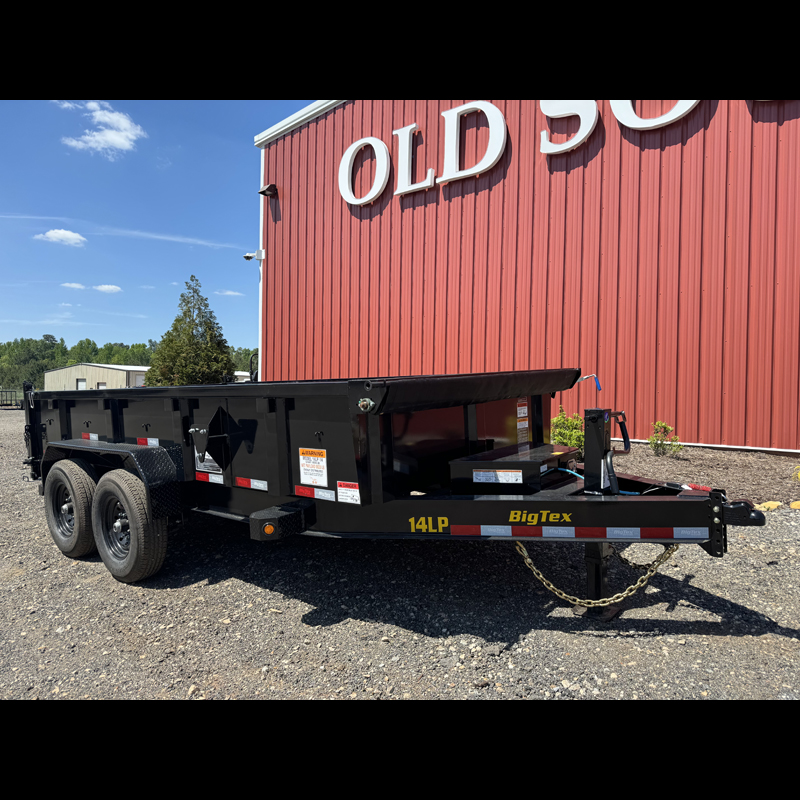

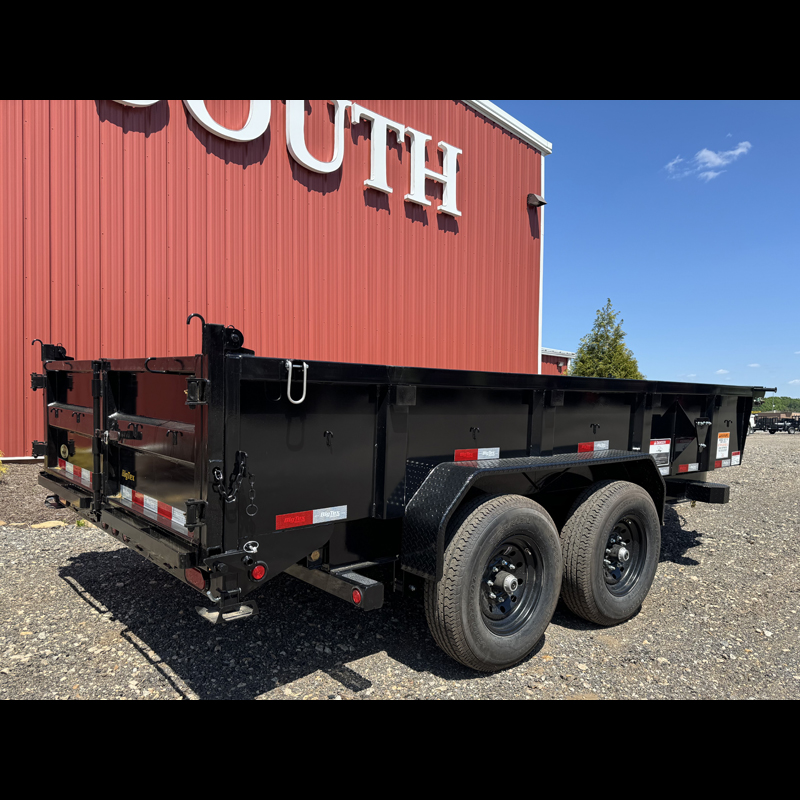

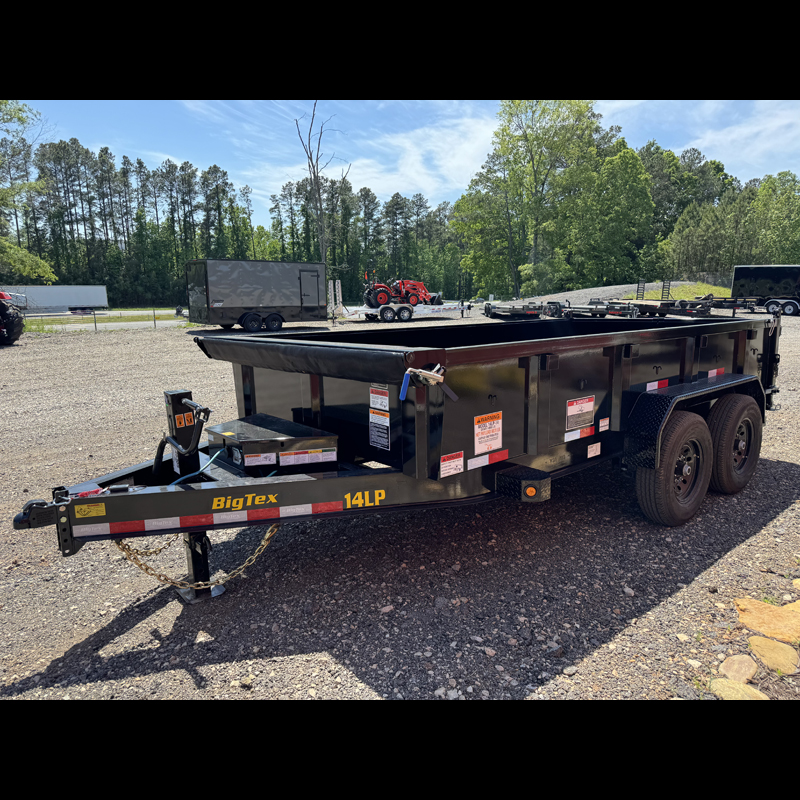

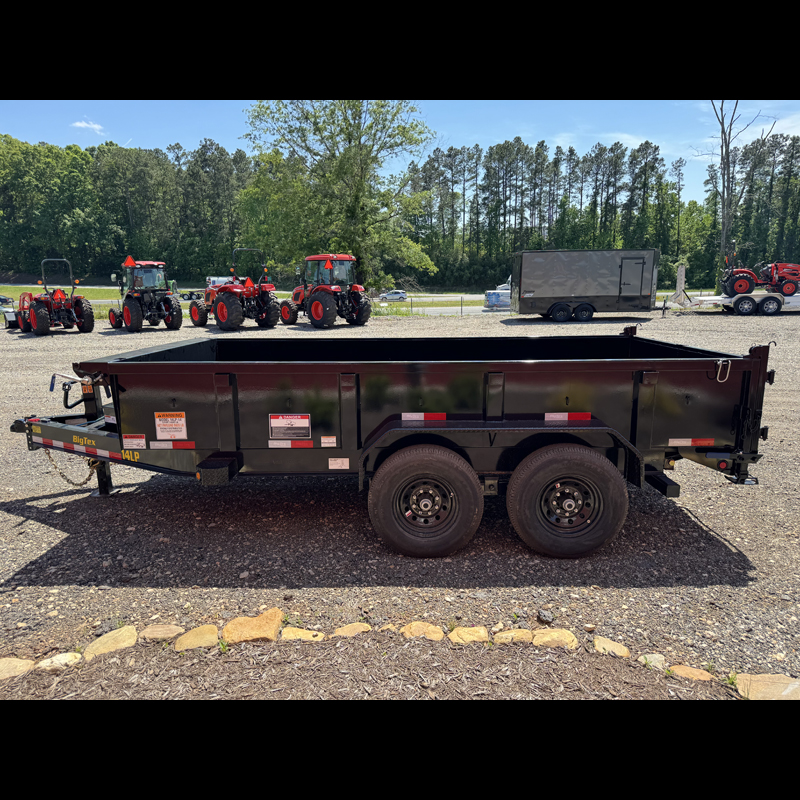

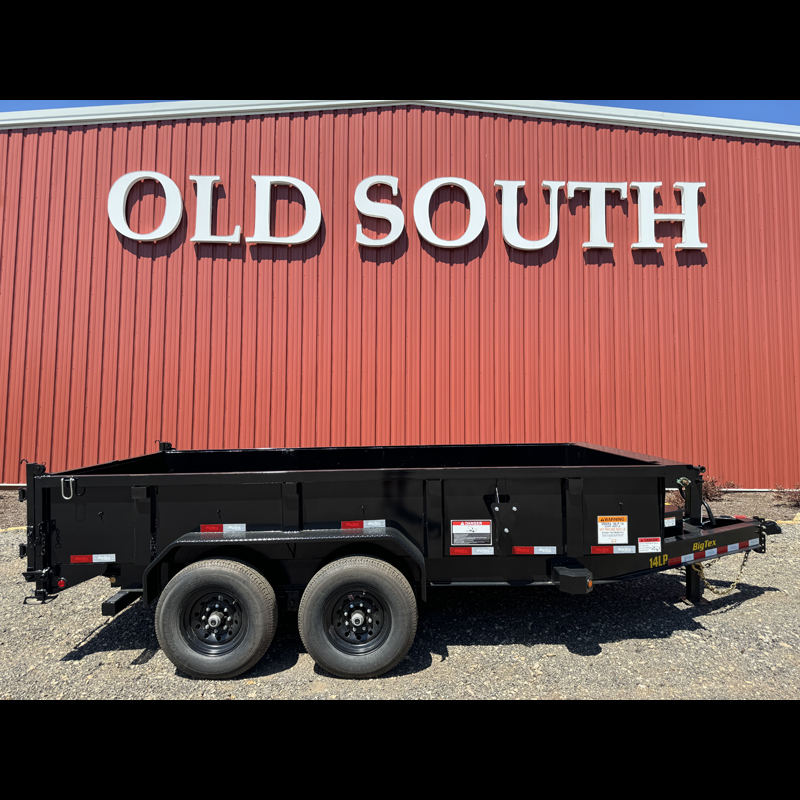

Big Tex 14LP-14BK6SIRPD – 14′ Ultra Low Profile Dump Trailer with Ramps

Need a dump trailer that can haul dirt and debris in the morning and equipment in the afternoon? The Big Tex 14LP-14BK6SIRPD is built with that kind of versatility in mind.

This heavy-duty 14′ dump trailer combines a 14,000-lb GVWR, tandem 7,000-lb axles, an 8″ seamless I-beam frame, a self-contained hydraulic scissor hoist, and an ultra-low-profile design. This particular configuration also includes the 6.5′ Slide-In Ramp Package, giving you the ability to use the trailer for equipment hauling when the job calls for more than just dumping material.

With 24″ tall steel sides, a 10-gauge steel floor, rear combo gate, integrated tie-downs, tarp system, and hydraulic dump operation, the 14LP-14BK6SIRPD is a serious work trailer built for contractors, landscapers, excavation crews, farmers, and equipment operators.

Specifications

Specification	Big Tex 14LP-14BK6SIRPD
Manufacturer	Big Tex Trailers
Model	14LP-14BK6SIRPD
Trailer Type	Heavy-Duty Ultra Low Profile Dump Trailer
Pull Type	Bumper Pull
Bed Length	14′
Bed Width	83″
GVWR	14,000 lbs
GAWR	7,000 lbs per axle
Configured Payload	Approx. 9,655 lbs
Base Model Empty Weight	4,180 lbs
Axles	2 × 7,000-lb Premium Cambered
Hubs	Quick-Lubricating
Brakes	Forward Self-Adjusting Electric Brakes on Both Axles
Suspension	Multi-Leaf Slipper Spring with Equalizer
Frame	8″ Seamless I-Beam
Tongue	8″ Seamless I-Beam Integrated with Frame
Crossmembers	3″ Channel on 16″ Centers
Coupler	Adjustable 2-5/16″ Demco EZ Latch
Safety Chains	3/8″ Grade 70 with Safety Latch Hooks
Jack	12,000-lb Drop-Leg, Side Wind
Floor	10-Gauge Smooth Steel
Side Walls	24″ Tall, 10-Gauge Steel
Top Rail	3″ × 2″ Rectangular Tubing
Dump Hoist	Self-Contained Hydraulic Scissor
Hydraulic Operation	Power Up / Power Down / Gravity Down
Dump Gate	Rear Combo Gate – Barn Doors & Spreader Gate
Ramps	6.5′ Slide-In Ramp Package
Tie-Downs	Four 1/2″ D-Rings Inside Bed
Stake Pockets	Along Both Sides
J-Hooks	Along Sides and Rear
Stabilizers	Rear Stabilizer Stands
Tarp	Fully Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Battery	12V Deep Cycle
Battery Charger	5A 110V Onboard Charger
Tires	ST235/80 R16 Load Range E Radial
Wheels	8-Lug Black Mod Steel
Fenders	9″ × 72″ 14-Gauge Diamond Plate
Lighting	Recessed, Grommet-Mounted LED
Wiring	Sealed Modular Cold-Weather Wiring Harness
Trailer Plug	7-Way RV
Breakaway	Complete Breakaway System with Zip Breakaway Cable
Spare Tire Mount	Side Mount
Color	Black

Exact 14LP-14BK6SIRPD listings from Big Tex Trailers shows approximately 9,655 lbs cargo capacity, reflecting the configured unit’s actual equipment and weight. Verify the VIN/specification plate on the individual trailer for final payload.

Features & Benefits

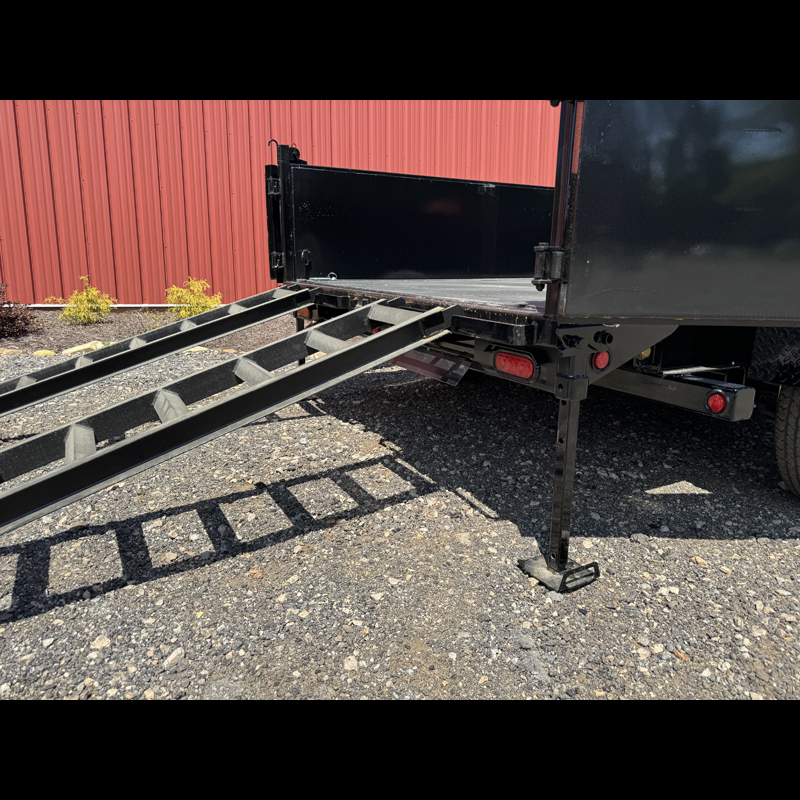

6.5′ Slide-In Equipment Ramps

This particular configuration adds the 6.5′ Slide-In Ramp Package, turning the dump trailer into a much more versatile equipment hauler.

When you need to move a skid steer, mower, compact tractor, or other equipment, the ramps give you a way to load it into the dump bed instead of needing a second trailer just for equipment. Big Tex lists the 6.5′ slide-in ramps as the equipment-ready option for the 14LP.

Ultra Low Profile Design

The 14LP is built around an ultra-low 28″ deck height in its standard configuration, making loading and unloading equipment easier than with a taller conventional dump trailer.

That’s especially useful when you’re using the trailer for both material hauling and equipment transport.

14,000-Lb GVWR

With tandem 7,000-lb axles, the 14LP gives you a 14,000-lb GVWR.

The 14′ model provides substantial capacity for hauling dirt, gravel, mulch, demolition debris, brush, construction material, and other dense loads—while still leaving you the flexibility to haul equipment when needed.

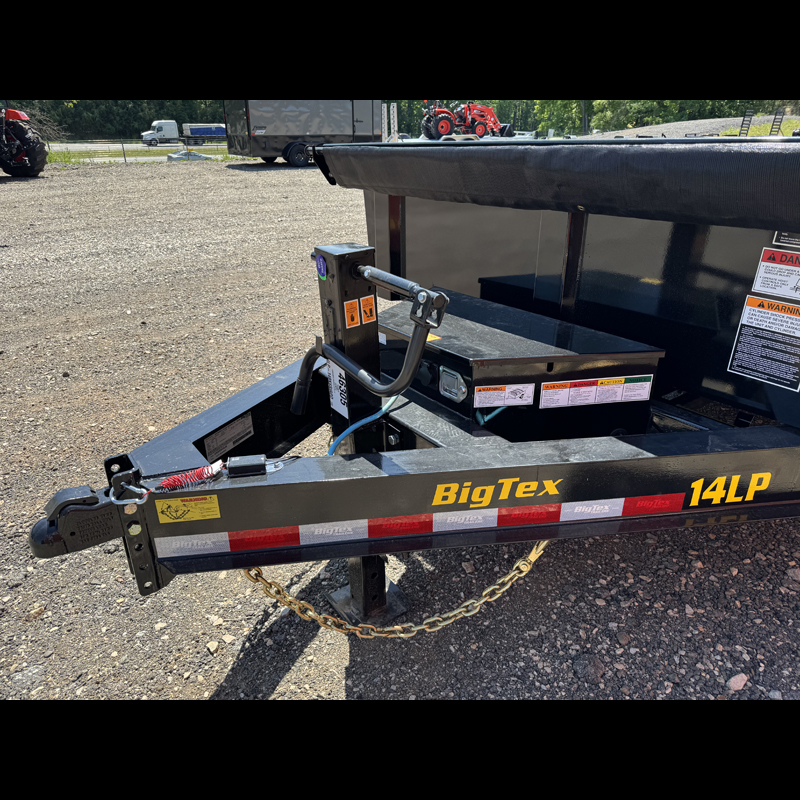

8″ Seamless I-Beam Frame

Big Tex builds the 14LP around an 8″ seamless I-beam frame with an integrated I-beam tongue.

That’s a substantial structural foundation for a trailer that is expected to repeatedly handle heavy dump loads and equipment.

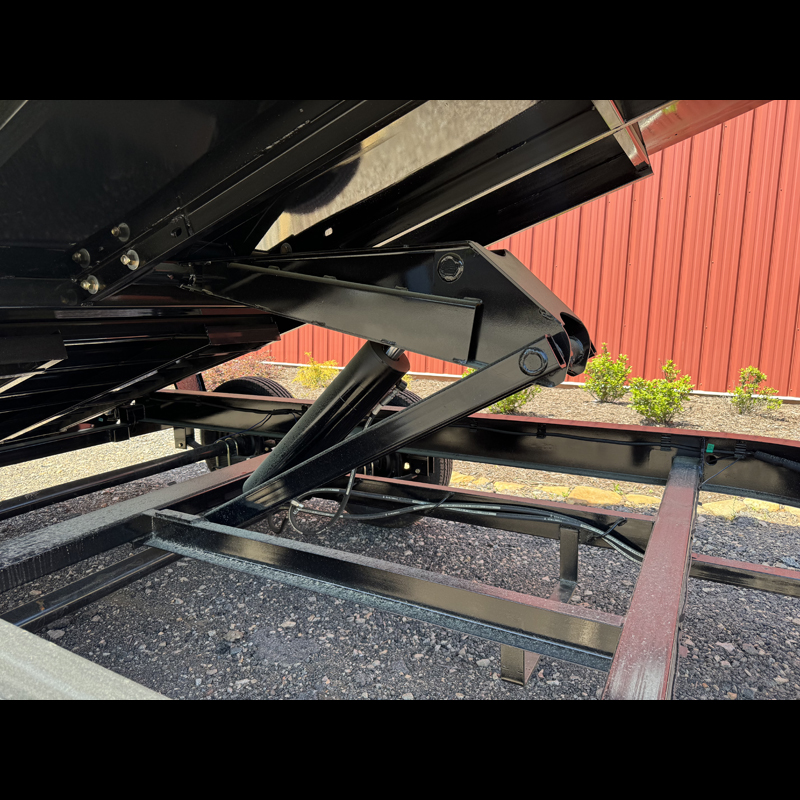

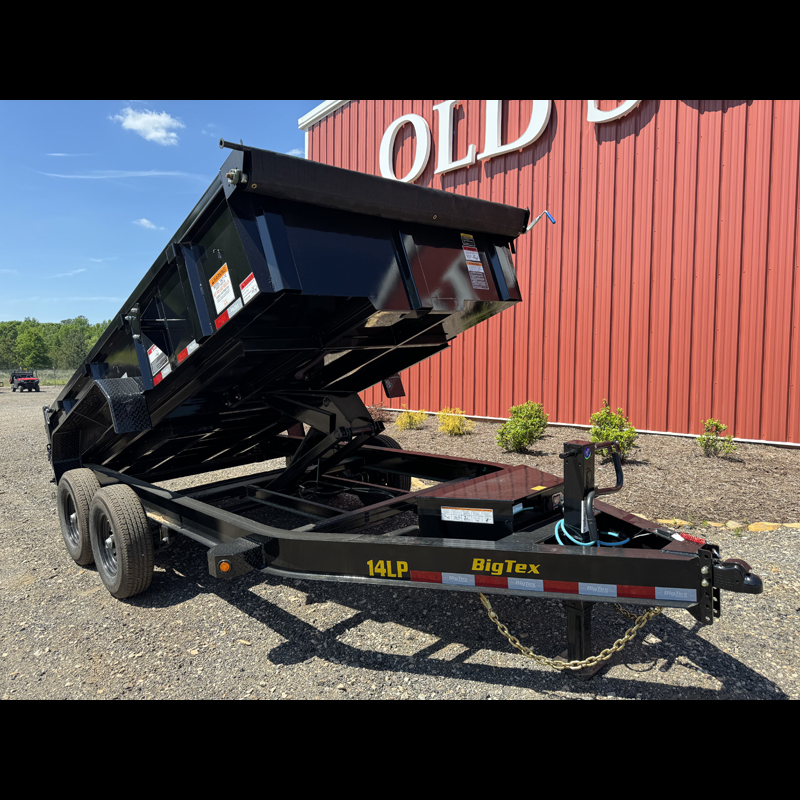

Hydraulic Scissor Hoist

The self-contained hydraulic scissor hoist provides the muscle needed to raise the dump body.

The system offers power-up, power-down, and gravity-down operation, giving the operator control over the dumping process without relying on an external hydraulic source.

Rear Combo Gate

The rear gate gives you two useful dumping configurations: barn-door style opening and spreader-gate operation.

That versatility is particularly useful when you’re spreading material instead of simply dumping an entire load in one pile.

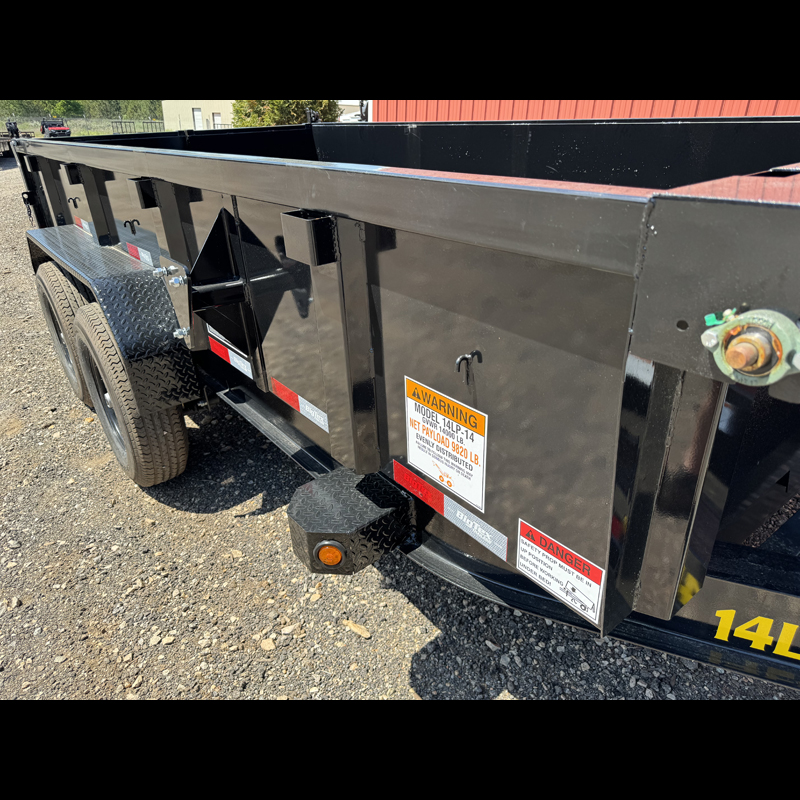

24″ Tall Steel Sides

The dump body uses 24″ tall, 10-gauge steel sides supported by formed channel structure.

That gives the trailer a substantial containment area for loose material while keeping the dump body relatively compact and low to the ground.

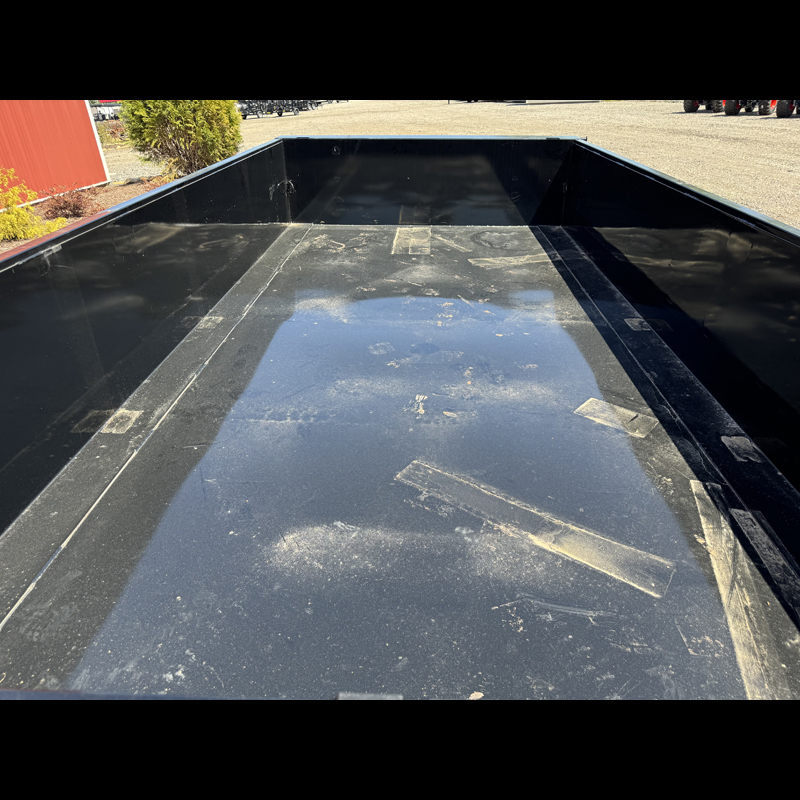

10-Gauge Steel Floor

The 10-gauge smooth steel floor is designed for the punishment that comes with loading and dumping heavy material.

For operators who routinely haul rock, dirt, gravel, construction debris, and similar loads, having a steel dump floor is essential.

Four 1/2″ D-Rings

Four 1/2″ D-rings inside the bed provide dedicated tie-down points when the trailer is being used to haul equipment.

Combined with the slide-in ramps, this gives the 14LP a useful second job as an equipment trailer.

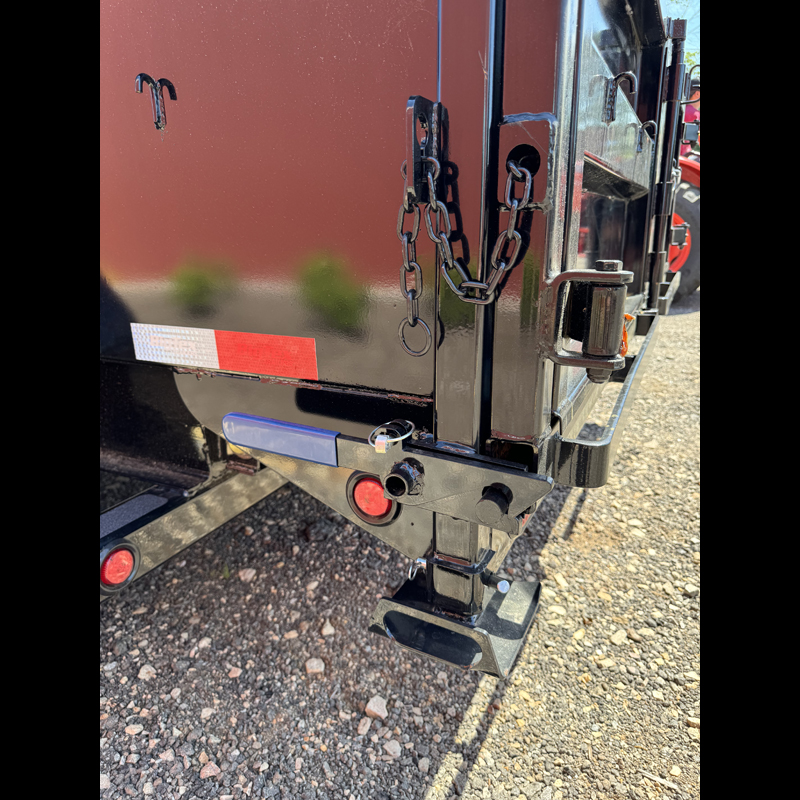

Rear Stabilizer Stands

Rear stabilizer stands are included to support the trailer when using the equipment ramps.

That’s an important feature when you’re loading heavy machinery and want additional stability at the rear of the trailer.

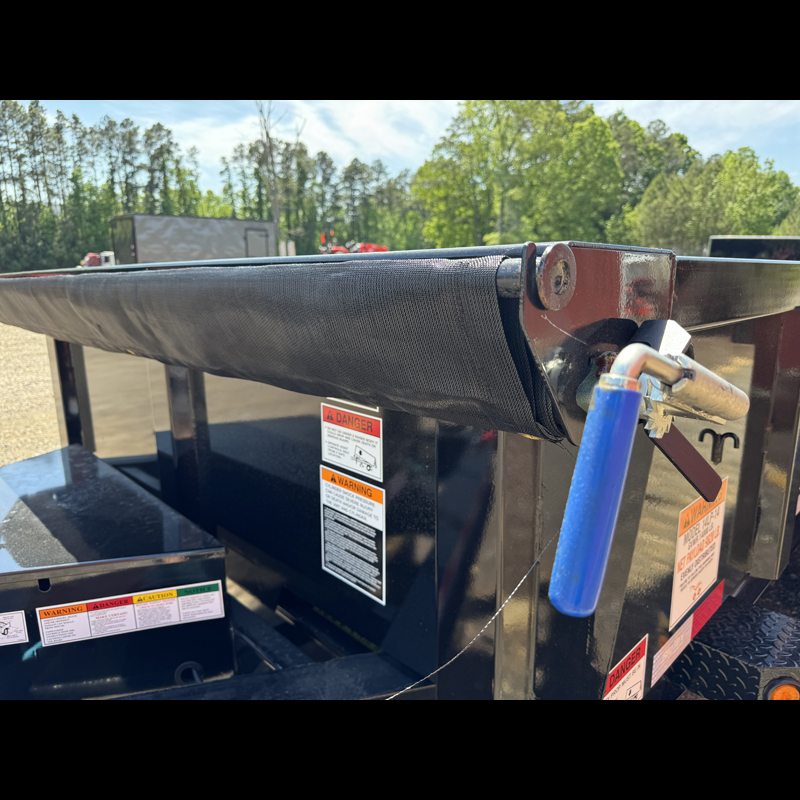

Built-In Tarp System

The 14LP includes a fully formed tarp shroud, tarp, and rear tarp rod holders.

A tarp helps keep loose material contained during transport and can help reduce material loss and exposure to the elements.

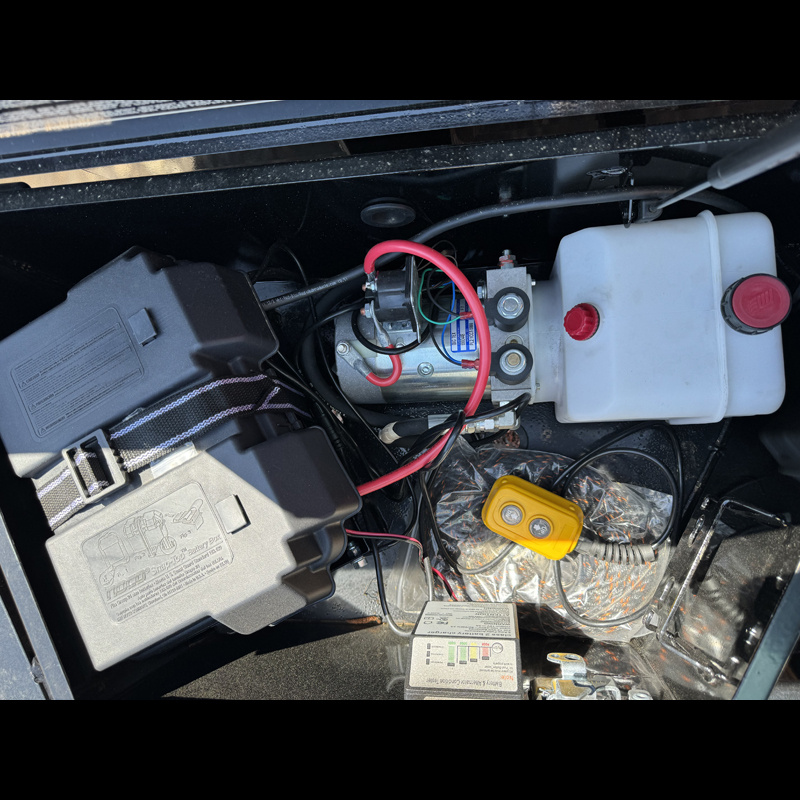

Onboard Battery & Charger

The trailer includes a 12V deep-cycle battery and 5A 110V onboard battery charger for the hydraulic system.

The onboard charger makes it easier to keep the dump system’s battery maintained when the trailer is parked.

Who Is the Big Tex 14LP-14BK6SIRPD For?

This configuration makes particular sense for businesses and property owners who need one trailer to do several different jobs.

It’s well suited for:

• Excavating contractors
• Landscaping companies
• Construction contractors
• Site-work contractors
• Demolition contractors
• Tree-service companies
• Equipment operators
• Farmers
• Property-maintenance businesses
• Municipal and commercial maintenance crews
• Contractors hauling skid steers and compact equipment

The dump body handles loose material, while the included 6.5′ ramps give you the ability to load equipment.

That’s a pretty handy combination when the jobsite doesn’t care whether you brought the “dump trailer” or the “equipment trailer.”

Frequently Asked Questions

What is the GVWR of the Big Tex 14LP-14BK6SIRPD?

The Big Tex 14LP-14BK6SIRPD has a 14,000-lb GVWR with two 7,000-lb axles.

How much can the Big Tex 14LP-14BK6SIRPD carry?

Big Tex’s current base 14LP-14 specification lists 9,820 lbs, so the actual payload of an individual configured trailer should be verified from its VIN/specification label.

How long is the Big Tex 14LP-14BK6SIRPD?

The dump bed is 14 feet long and 83 inches wide.

Does this 14LP have equipment ramps?

Yes. The 14LP-14BK6SIRPD specifically includes the 6.5′ Slide-In Ramp Package. Big Tex identifies the 6.5′ slide-in ramps as the equipment-hauling option for the 14LP.

Can the 14LP haul a skid steer?

The 14LP is designed with equipment hauling in mind when equipped with the optional slide-in ramp package. The exact equipment being transported must fit within the trailer’s dimensions and remain within its rated payload, axle, tire, and securement limits.

What type of gate does the 14LP have?

The 14LP comes with a rear combo gate that provides both barn-door and spreader-gate functions.

Does the 14LP have a hydraulic dump?

Yes. It uses a self-contained hydraulic scissor hoist with power-up, power-down, and gravity-down operation.

What size axles does the 14LP-14 have?

The trailer uses two 7,000-lb premium cambered axles with quick-lubricating hubs.

Does the Big Tex 14LP have electric brakes?

Yes. The 14LP has forward self-adjusting electric brakes on both axles.

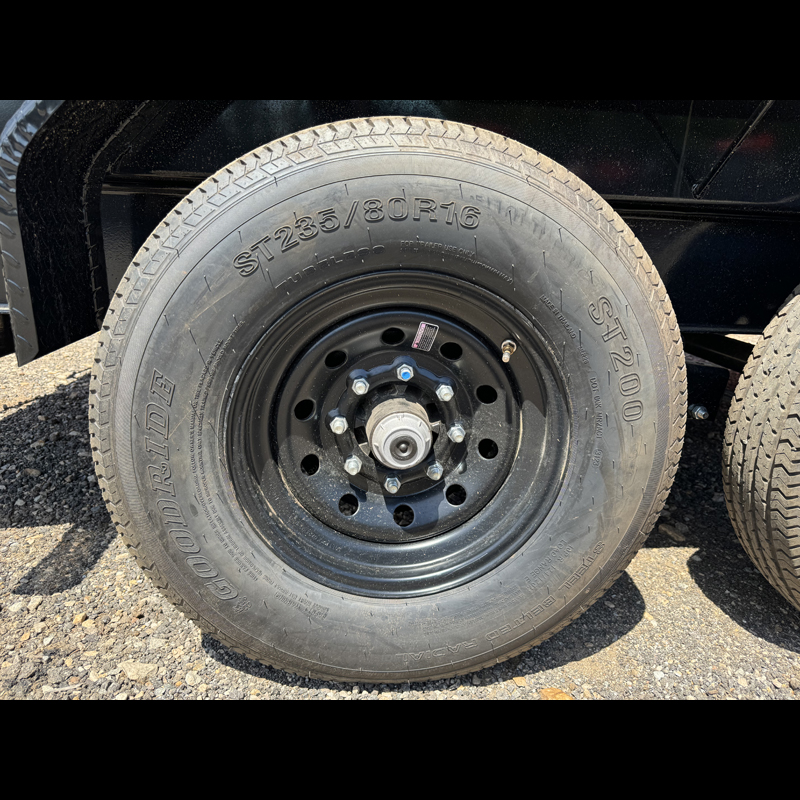

What size tires does the 14LP-14 use?

The standard tires are ST235/80 R16 Load Range E radial tires mounted on 8-lug black mod steel wheels. A Load Range G tire upgrade is available.

Does the 14LP have a tarp?

Yes. The 14LP includes a fully formed tarp shroud, tarp, and rear tarp rod holders.

Does the Big Tex 14LP have a battery charger?

Yes. The trailer includes a 5A 110V onboard battery charger and 12V deep-cycle battery.

Safety & Cargo Securement

A dump trailer can haul a tremendous amount of material, but the trailer’s GVWR is not a suggestion. Always verify the trailer’s actual empty weight, available payload, axle ratings, tire ratings, tow-vehicle capacity, hitch rating, and the weight of the material or equipment being loaded.

When using the included ramps to load equipment, use the rear stabilizer stands as intended and make sure equipment is properly positioned and secured before moving the trailer. Loose material should be loaded within the trailer’s rated capacity and covered appropriately for transport.

To cross-verify that your trailer configuration conforms to modern cargo security standards, review the safety regulations listed on the NATM Website. If you are looking to cross-shop this trailer with other configurations in our active inventory lot, feel free to browse our full catalog of trailers for sale right here on our digital showroom.
