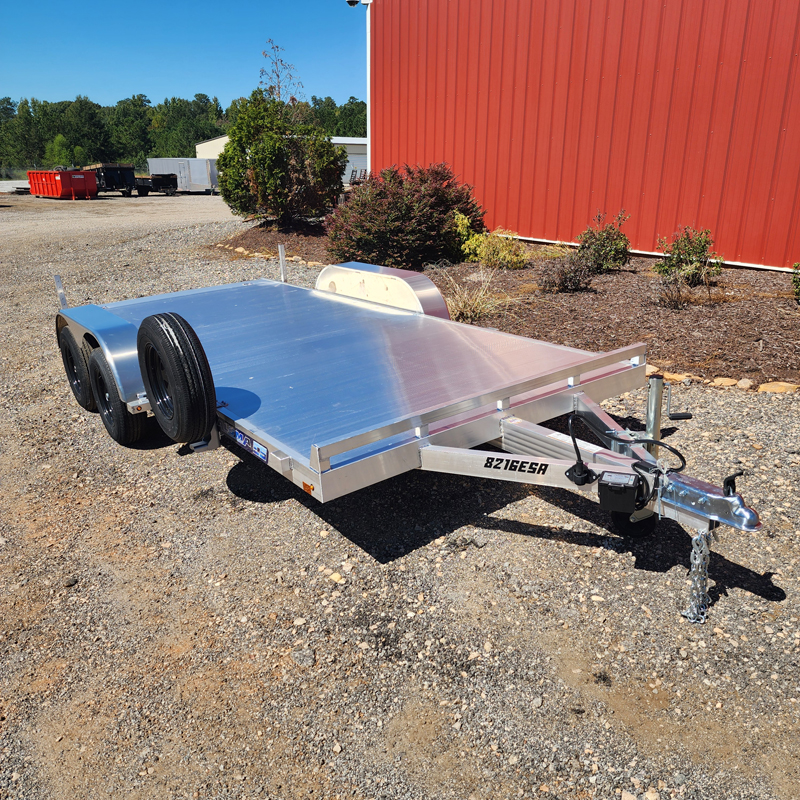

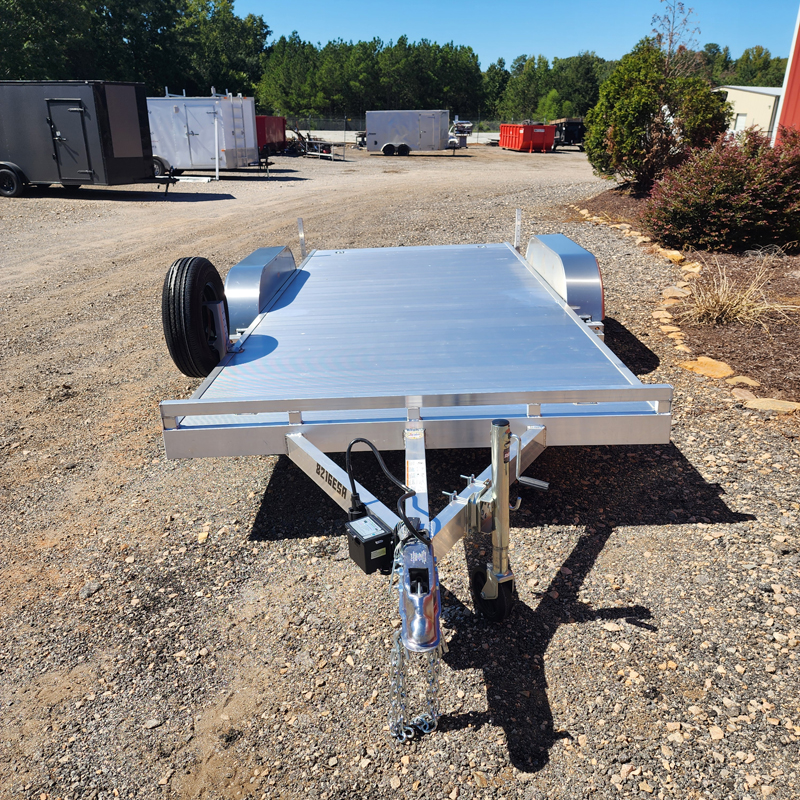

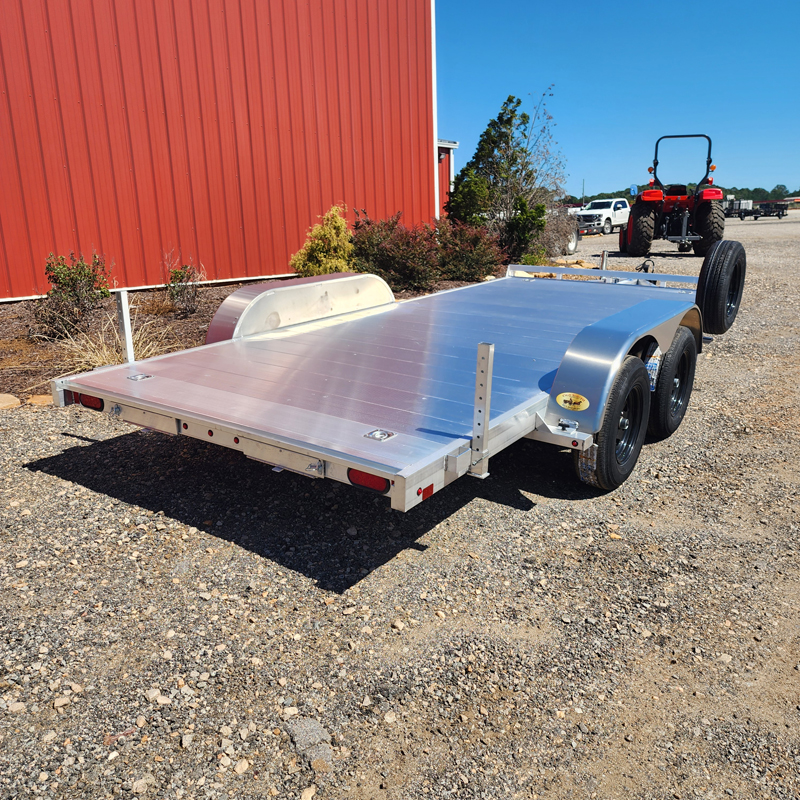

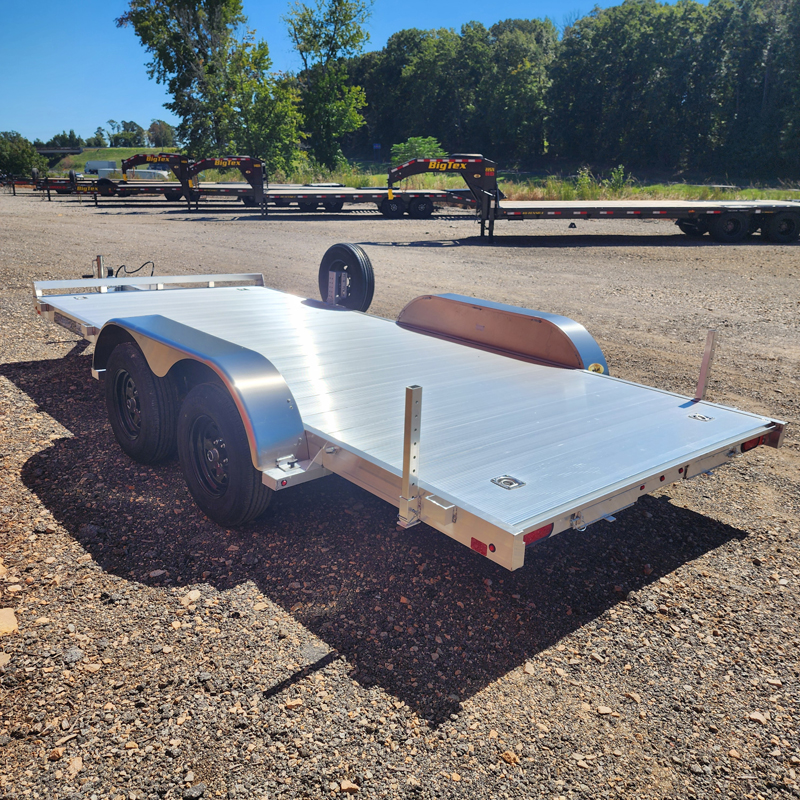

Aluma 8216ESA Economy Series – 16′ Tandem Axle Aluminum Trailer

If you’re looking for a utility trailer that gives you 7,000-lb capacity without bringing a bunch of unnecessary trailer weight along for the ride, the Aluma 8216ESA is worth a serious look.

The Aluma 8216ESA Economy Series is a 16′ tandem-axle aluminum utility trailer built with an 81″ wide deck, 7,000-lb GVWR, extruded aluminum floor, rubber-torsion axles, electric brakes, removable aluminum fenders, and two 6′ aluminum loading ramps.

And here’s the part that gets your attention: the factory-listed trailer weight is only 1,340 pounds.

That’s a lot of hauling capability without a lot of trailer following you around.

The 8216ESA is part of Aluma’s 8200TA ESA tandem-axle utility trailer series, which uses all-aluminum construction except for the axles and coupler. Aluma also backs the series with its all-inclusive five-year warranty.

Specifications

Specification	Aluma 8216ESA
Manufacturer	Aluma
Model	8216ESA
Series	Economy Series / 8200TA ESA
Trailer Type	Tandem Axle Aluminum Utility Trailer
Pull Type	Bumper Pull
GVWR	7,000 lbs
Factory Empty Weight	1,340 lbs
Factory Listed Payload*	5,660 lbs
Deck Length	16′
Deck Width	81″
Overall Width	101.5″
Axles	2 × 3,500-lb Rubber Torsion
Brakes	Electric
Hubs	Easy-Lube
Suspension	Rubber Torsion
Floor	Extruded Aluminum
Tongue	A-Frame Aluminum, 48″
Coupler	2-5/16″
Jack	1,500-lb Swivel Tongue Jack
Fenders	Removable Aluminum
Ramps	2 × 6′ Aluminum
Tie-Downs	4 Recessed Tie Rings
Stake Pockets	6
Rear Stabilizers	2
Tires	ST205/75R14 Radial
Wheels	Steel, 5 on 4.5″
Lighting	LED
Safety Equipment	Safety Chains
Construction	Aluminum
Warranty	Aluma 5-Year All-Inclusive Warranty

*The 5,660-lb figure is calculated from Aluma’s factory-listed 7,000-lb GVWR minus the 1,340-lb factory weight. Always use the actual trailer’s certification label as the final authority for its weight and available payload.

Features & Benefits

Lightweight Aluminum Construction

This is the reason to buy an Aluma.

The 8216ESA is constructed from aluminum throughout the trailer, except for the axles and coupler. At just 1,340 pounds factory-listed empty weight, it gives you a tremendous amount of rated capacity without requiring a heavy steel trailer to get there.

That means more of your tow vehicle’s capacity can be devoted to the stuff you’re actually trying to haul.

7,000-Lb GVWR

Don’t let the lightweight construction fool you.

The 8216ESA carries a 7,000-lb GVWR through two 3,500-lb rubber-torsion axles. With the factory-listed 1,340-lb trailer weight, that works out to approximately 5,660 pounds of payload capacity before accounting for any added options or accessories.

That’s an impressive amount of capacity for an aluminum utility trailer this light.

16′ × 81″ Deck

The 16-foot deck gives you plenty of room for lawn equipment, ATVs, side-by-sides, landscaping equipment, building materials, and general-purpose cargo.

At 81″ between the fenders, you’ve got a useful working width while keeping the trailer’s overall construction compact and tow-friendly.

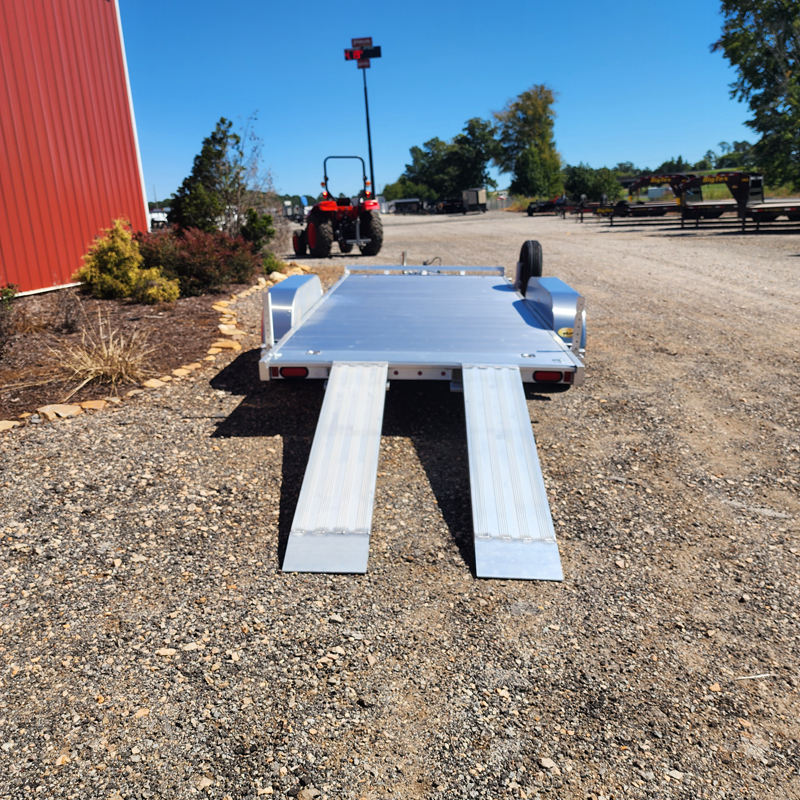

Two 6′ Aluminum Ramps

Loading equipment is a whole lot easier when the ramps are already part of the trailer.

The 8216ESA comes with two 6′ aluminum ramps, giving you a straightforward way to load mowers, compact equipment, ATVs, and other wheeled equipment. The ramps are designed to store with the trailer rather than becoming another item you have to remember to throw in the truck.

Extruded Aluminum Floor

The extruded aluminum floor keeps the trailer’s overall weight down while providing a durable hauling surface.

It also gives the 8216ESA the clean, low-maintenance appearance that aluminum trailers are known for.

Rubber-Torsion Axles

Aluma uses two 3,500-lb rubber-torsion axles on the 8216ESA.

The torsion suspension provides independent wheel movement and eliminates the traditional leaf-spring-and-equalizer arrangement found on many utility trailers. Aluma also equips the axles with electric brakes and easy-lube hubs.

Electric Brakes

Both axles are equipped with electric brakes, giving the 8216ESA the braking capability expected from a 7,000-lb tandem trailer.

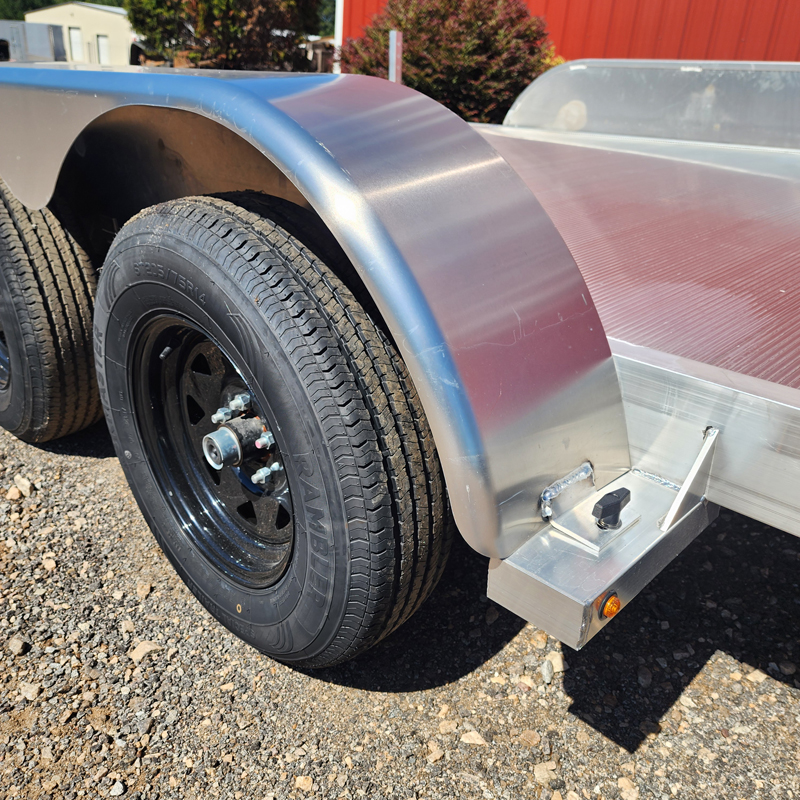

Removable Aluminum Fenders

The aluminum fenders aren’t just there to keep road grime off your equipment.

They’re removable, which is useful when you’re loading wider equipment or need additional access around the wheels. And because they’re aluminum, they keep with the trailer’s lightweight construction.

Four Recessed Tie Rings

Four recessed stainless-steel #2000 tie rings provide dedicated cargo-securement points built into the deck.

That gives you a clean place to attach straps without having tie-down hardware sticking up where it doesn’t belong.

Six Stake Pockets

Six stake pockets—three on each side—give you additional flexibility when configuring the trailer for different loads.

Need sides? Need additional attachment points? The pockets give you somewhere to start.

Rear Stabilizer Legs

Two rear stabilizer legs provide additional support when loading equipment onto the trailer.

That’s a useful feature when you’re putting a mower, ATV, or other equipment on ramps rather than simply driving onto a flat deck.

LED Lighting

The 8216ESA uses an LED lighting package for the trailer’s exterior lighting.

LED lighting is a nice fit for a trailer built around low weight and low-maintenance ownership.

1,500-Lb Swivel Jack

The 1,500-lb swivel tongue jack provides the support needed for normal hitching and unhitching while allowing the jack to swing out of the way when you’re ready to travel.

Who Is the Aluma 8216ESA For?

The 8216ESA makes a lot of sense for buyers who want tandem-axle capacity without the weight penalty of a traditional steel utility trailer.

It’s a particularly good fit for:

• Landscapers
• Lawn-care companies
• Farmers
• Property owners
• Contractors
• ATV owners
• Side-by-side owners
• Golf-cart owners
• Small equipment operators
• Homeowners with larger hauling needs
• Anyone looking for a lightweight 7K utility trailer

It’s especially attractive when your tow vehicle has plenty of capability but you still don’t want to spend half your towing capacity just moving the trailer itself.

Frequently Asked Questions

How much does the Aluma 8216ESA weigh?

Aluma lists the factory weight at 1,340 pounds for the 8216ESA-TA-EL-R-RTD configuration.

What is the GVWR of the Aluma 8216ESA?

The 8216ESA has a 7,000-lb GVWR, provided by two 3,500-lb rubber-torsion axles.

How much payload can it carry?

Based on Aluma’s factory-listed 1,340-lb weight and 7,000-lb GVWR, the theoretical payload is approximately 5,660 pounds.

Always check the certification label on the actual trailer, especially if options or accessories have been added.

How long is the Aluma 8216ESA?

The deck is 16 feet long, with an 81″ deck width. Aluma lists the bed size as 6’10” × 16′ (81″ × 192″).

Does the Aluma 8216ESA come with ramps?

Yes. The current 8216ESA configuration includes two 6′ aluminum ramps.

Does the 8216ESA have brakes?

Yes. It has electric brakes on the tandem 3,500-lb axles.

What size ball does it use?

The trailer uses a 2-5/16″ coupler mounted to the 48″ A-frame aluminum tongue.

Is the Aluma 8216ESA aluminum?

Yes. Aluma identifies the 8200TA ESA series as all-aluminum construction except for the axles and coupler.

What can I haul with an Aluma 8216ESA?

The 16′ deck and included ramps make it well suited for lawn equipment, ATVs, side-by-sides, small equipment, landscaping materials, building materials, and general-purpose cargo.

Always verify that the loaded cargo remains within the trailer’s actual GVWR, axle ratings, tire ratings, and tow vehicle limits.

Safety & Cargo Securement

Lightweight doesn’t mean load it without thinking.

Always stay within the trailer’s GVWR, axle ratings, tire ratings, and tow vehicle limits. Distribute cargo properly, use appropriately rated tie-down equipment, and inspect the coupler, safety chains, tires, wheels, brakes, ramps, stabilizer legs, and lights before every trip.
