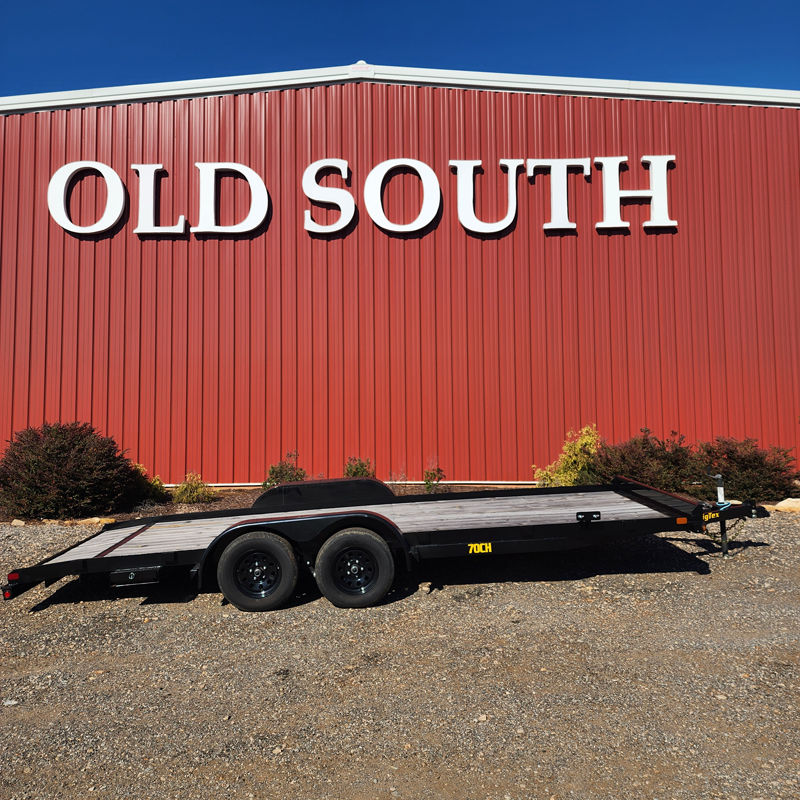

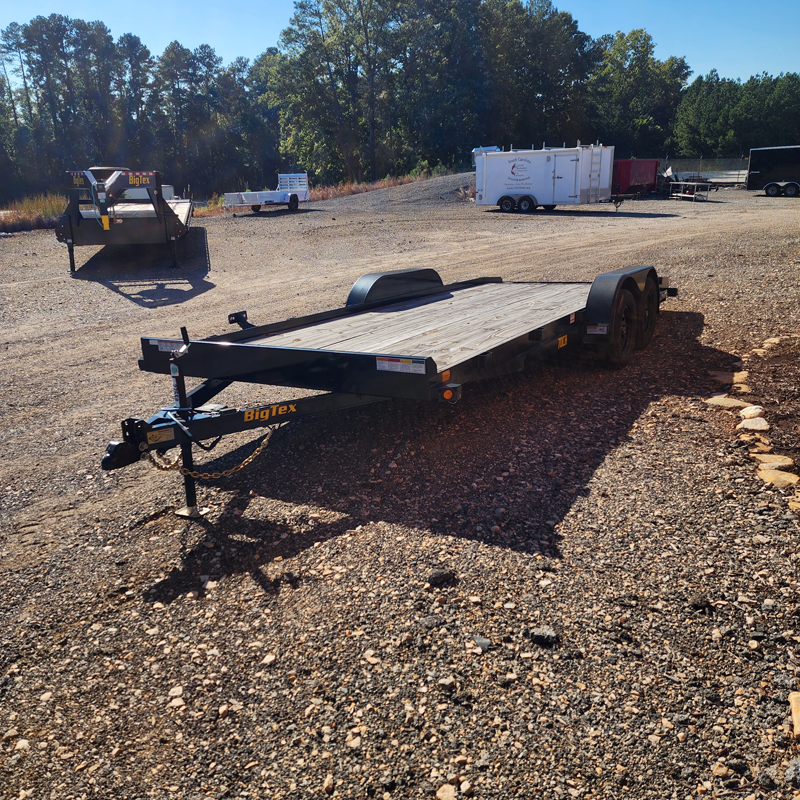

Big Tex 70CH-20BKDT – 20′ Car Hauler with Dovetail & Slide-In Ramps

If you’re looking for one trailer that can haul cars, trucks, tractors, ATVs, side-by-sides, and just about whatever else will fit between the fenders, the Big Tex 70CH-20BKDT is built to get the job done without making things complicated.

This 20′ tandem axle car hauler combines an 83″ wide deck, 7,000-lb GVWR, 2′ dovetail, 4′ slide-in ramps, removable teardrop fenders, and a treated-pine floor. It’s a straightforward, versatile bumper-pull trailer designed for everything from vehicle transport to equipment hauling.

And because this particular configuration includes the dovetail and slide-in ramps, loading isn’t a “hope you brought a couple pieces of lumber” operation. You’ve got a purpose-built loading setup ready to work.

Specifications

Specification	Big Tex 70CH-20BKDT
Trailer Type	Tandem Axle Car Hauler
Pull Type	Bumper Pull
Factory Model	70CH-20
Configuration	Black, Dovetail, 4′ Slide-In Ramps, Spare Tire Mount
GVWR	7,000 lbs
Axles	2 × 3,500-lb Premium Cambered
GAWR	3,500 lbs per axle
Factory Base Empty Weight	2,060 lbs
Factory Base Cargo Capacity	4,940 lbs
Configured Empty Weight	Approximately 2,119 lbs
Configured Payload	Approximately 4,881 lbs
Bed Length	20′
Bed Width	83″
Dovetail	2′
Ramps	4′ Slide-In Angle Ramps
Frame	5″ × 3″ × 5/16″ Angle
Crossmembers	3″ × 2″ × 3/16″ Angle
Tongue	4″ Channel Fold-Back/Wrap
Coupler	Adjustable 2″ Forged
Safety Chains	1/4″ Grade 70 with Safety Latch Hooks
Jack	2,000-lb Top-Wind Set-Back
Floor	Treated Pine
Front Stop Rail	3/16″ Fabricated
Fenders	9″ × 72″ Removable Teardrop
Tires	ST205/75 R15 Load Range C Radial
Wheels	Black Mod
Bolt Pattern	5 on 5
Brakes	Forward Self-Adjusting Electric Brake on Front Axle
Suspension	Multi-Leaf Spring with Equalizer
Stake Pockets	Along Both Sides
Lighting	LED DOT Stop, Tail, Turn & Clearance
Wiring	Grommet-Mounted Lifetime LED Lighting
Trailer Plug	7-Way RV
Spare Tire Mount	Included in this configuration
Spare Tire	Optional
Paint Color	Black

Big Tex’s official model table lists the 70CH-20 at 7,000 lbs GVWR, 2,060 lbs empty, and 4,940 lbs cargo capacity. Those figures are for the base 70CH-20 before configuration-specific options. The manufacturer Quick Config listing identifies 70CH-20BKDT as the black 20′ configuration with dovetail, 4′ slide-in ramps, and spare tire mount.

Current listings for the exact 70CH-20BKDT configuration show approximately 2,119 lbs empty and 4,881 lbs payload. For an actual unit, always use the VIN/certification label as the final authority for empty weight and allowable cargo.

Features & Benefits

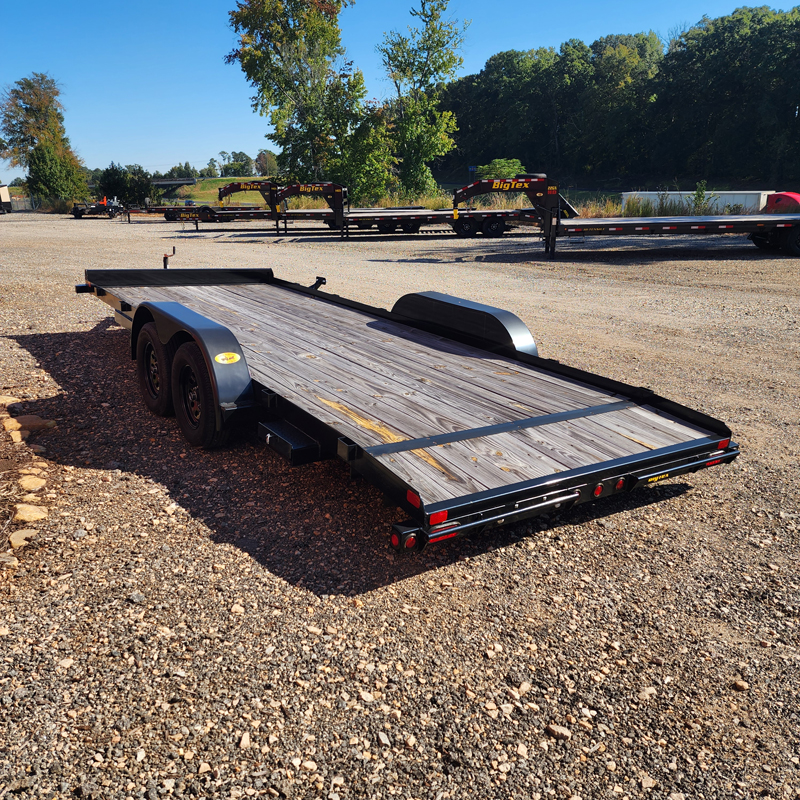

20′ × 83″ Car Hauling Deck

The 20′ × 83″ deck gives you plenty of room for full-size vehicles while still providing the versatility to haul tractors, ATVs, side-by-sides, and other equipment.

Big Tex specifically describes the 70CH as a versatile car hauler designed for cars, small tractors, ATVs, and side-by-sides.

That’s a pretty useful list for one trailer.

7,000-Lb GVWR

The 70CH-20 uses two 3,500-lb axles for a 7,000-lb GVWR.

That gives the trailer enough capacity for a wide variety of vehicles and recreational equipment while keeping it in a familiar tandem-axle bumper-pull package.

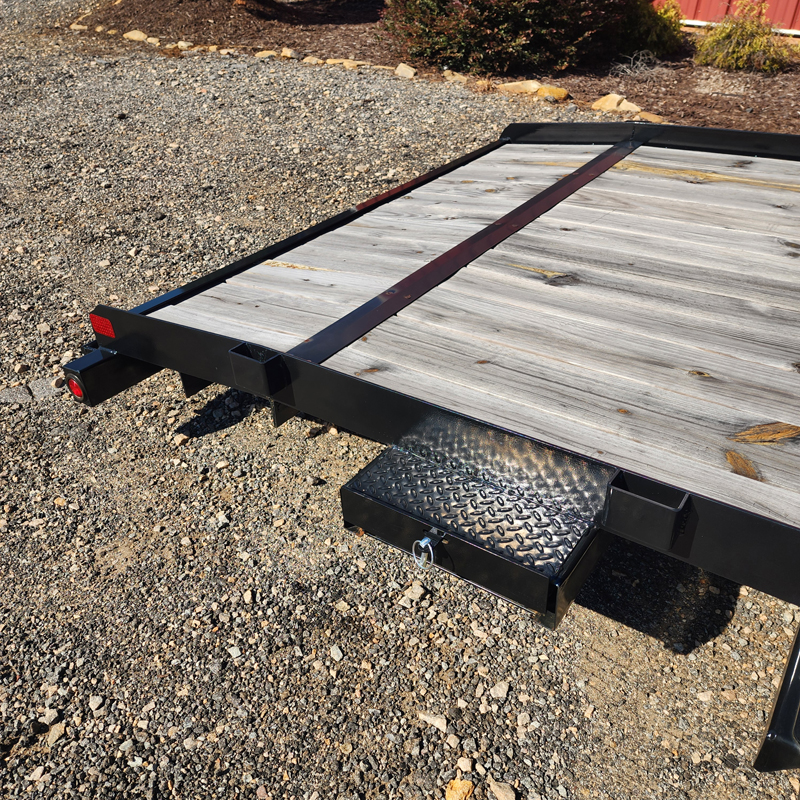

2′ Dovetail

The rear dovetail provides a gradual transition for loading vehicles and equipment.

Rather than ending the deck abruptly at the rear, the dovetail helps reduce the approach angle as you’re loading—particularly useful for lower-clearance vehicles.

The manufacturer’s Quick Config identifies the DT configuration as a dovetail-equipped 70CH-20. Current 70CH-20BKDT listings identify the dovetail as approximately 2′.

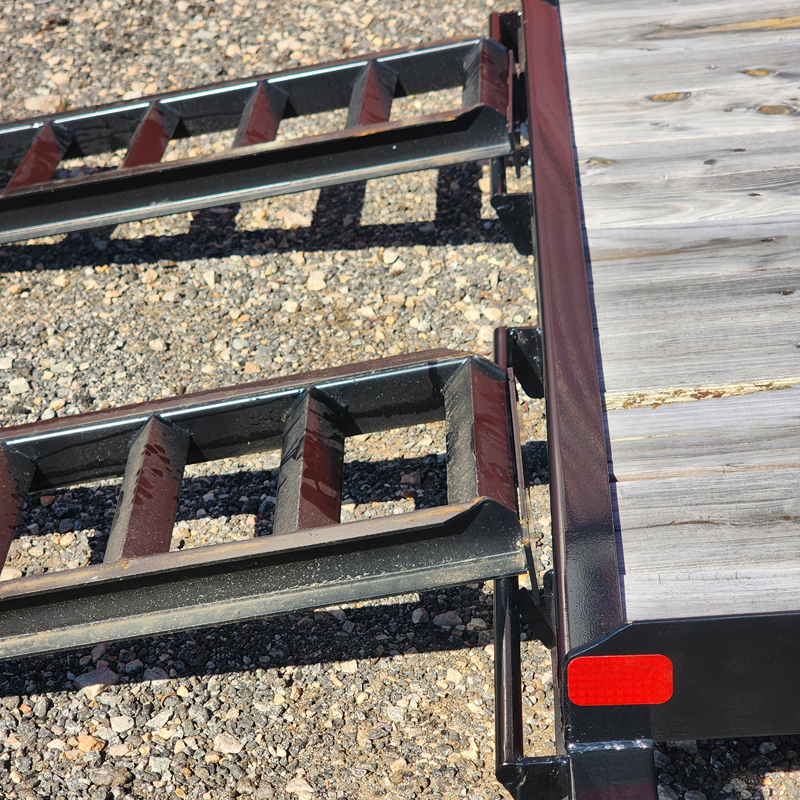

4′ Slide-In Angle Ramps

The 4′ slide-in angle ramps are included in this particular configuration.

They give you a dedicated loading solution for cars, ATVs, tractors, and other equipment without having to carry around homemade ramps or hunt for a suitable loading dock. Big Tex identifies the 4′ slide-in ramp package as an available 70CH option, and the 70CH-20BKDT Quick Config includes it as standard for this configuration.

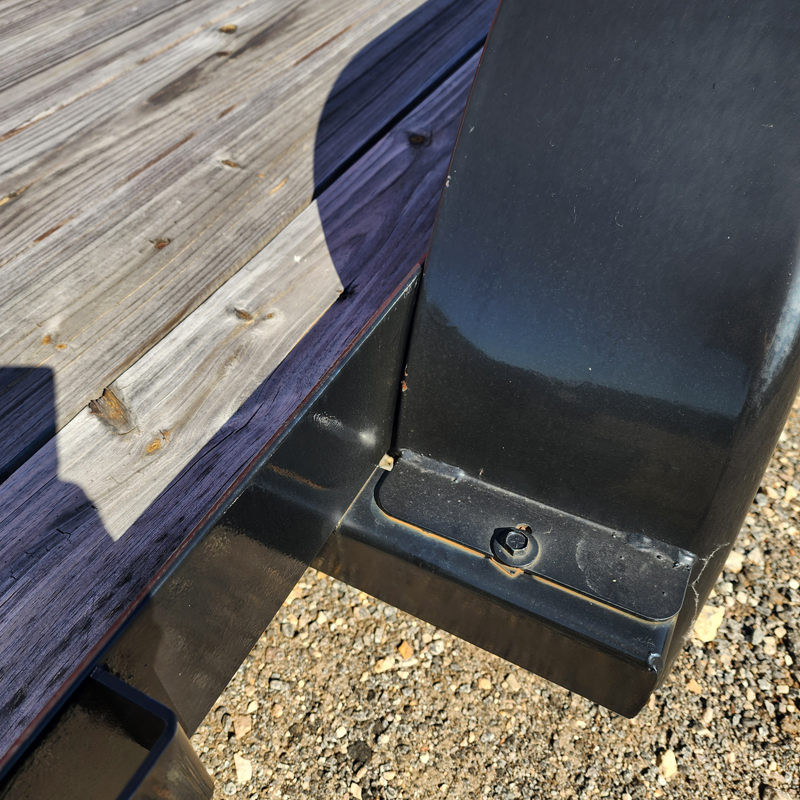

Removable Teardrop Fenders

The 9″ × 72″ steel teardrop fenders are bolted on and removable.

That gives you flexibility when loading and unloading equipment and makes maintenance or eventual fender replacement easier. Big Tex specifically highlights the removable-fender design as a feature of the 70CH.

Treated-Pine Deck

The treated-pine floor provides a traditional, durable hauling surface with good traction for vehicle and equipment tires.

It’s also straightforward to repair or replace down the road—because eventually somebody will manage to put a tire where a tire probably shouldn’t go.

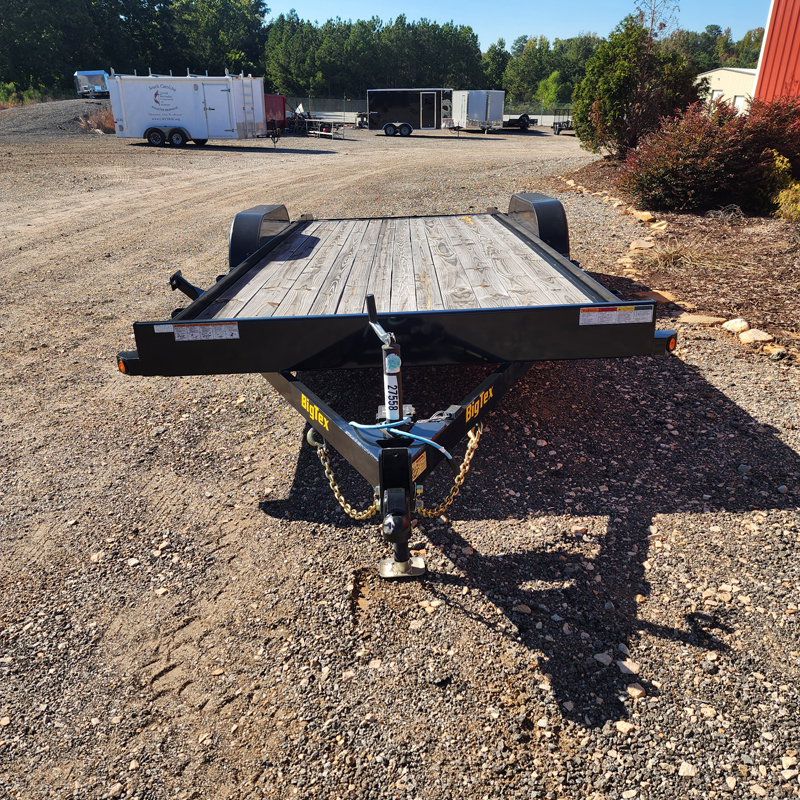

4″ Channel Fold-Back/Wrap Tongue

The 70CH uses a 4″ channel fold-back/wrap tongue.

That design gives the front of the trailer a clean, integrated structure while keeping the tongue length practical for a bumper-pull car hauler.

Adjustable 2″ Forged Coupler

The standard adjustable 2″ forged coupler allows the trailer to be matched to the appropriate ball height of the tow vehicle.

Big Tex also offers 2-5/16″ forged and stamped coupler options.

Tandem Cambered Axles

Two 3,500-lb premium cambered axles provide the 70CH-20’s 7,000-lb GVWR.

The front axle receives a forward self-adjusting electric brake as standard, with electric brakes on the second axle available as an option.

Stake Pockets Along Both Sides

Stake pockets provide additional flexibility for securing cargo or adding removable side supports when the job calls for them.

That’s particularly handy when the trailer isn’t hauling a vehicle and suddenly gets recruited to haul something completely different.

LED Lighting

LED DOT stop, tail, turn, and clearance lights are standard, along with grommet-mounted lifetime LED lighting and a 7-way RV plug.

Who Is the Big Tex 70CH-20BKDT For?

The 70CH-20BKDT is a particularly versatile choice for customers who need a 20′ car hauler that can do more than just haul cars.

It’s a good fit for:

• Vehicle owners transporting cars and trucks
• Classic-car and race-car enthusiasts
• Small equipment owners
• Farmers hauling compact tractors
• Landscapers hauling equipment
• ATV and side-by-side owners
• Contractors hauling small equipment
• Property owners with multiple hauling needs
• Customers looking for a versatile 7K bumper-pull trailer

The combination of a 20′ deck, dovetail, slide-in ramps, removable fenders, and 7,000-lb GVWR gives this trailer a broad range of uses.

Big Tex 70CH-20BKDT FAQ

How much can the Big Tex 70CH-20BKDT haul?

The factory 70CH-20 specification is 7,000 lbs GVWR with 2,060 lbs empty weight and 4,940 lbs cargo capacity. Because the BKDT configuration adds the dovetail, ramps, and spare-tire mount, current listings show the configured trailer around 2,119 lbs empty and 4,881 lbs payload. Always verify the certification label on the actual trailer.

How long is the Big Tex 70CH-20BKDT?

The trailer has a 20′ bed and an 83″ deck width.

How wide is the 70CH-20BKDT?

The deck is 83 inches wide.

Does the 70CH-20BKDT have a dovetail?

Yes. The DT configuration includes a rear dovetail. Current listings for the exact 70CH-20BKDT identify it as approximately 2′ long.

Does the 70CH-20BKDT come with ramps?

Yes. This configuration includes 4′ slide-in angle ramps.

What size axles does the 70CH-20 use?

The trailer uses two 3,500-lb premium cambered axles.

Does the 70CH-20BKDT have removable fenders?

Yes. It uses 9″ × 72″ removable teardrop fenders. Big Tex designed them to be removable for easier loading, unloading, and maintenance.

Is the Big Tex 70CH-20BKDT a bumper-pull trailer?

Yes. The 70CH-20 is a bumper-pull car hauler.

What can I haul on a Big Tex 70CH-20BKDT?

Big Tex specifically describes the 70CH as suitable for transporting cars, small tractors, ATVs, and side-by-sides. Its 20′ × 83″ deck also makes it useful for a variety of other properly sized and secured cargo.

Big Tex 70CH-20BKDT at Old South Trailers

The Big Tex 70CH-20BKDT is the kind of trailer that doesn’t need to know what your weekend plans are.

Car today? Fine.

Side-by-side tomorrow? Yep.

Compact tractor next week? Load it up.

You’ve got a 20′ × 83″ deck, 7,000-lb GVWR, 2′ dovetail, 4′ slide-in ramps, removable fenders, and tandem 3,500-lb axles in one straightforward bumper-pull package.

That’s a lot of trailer for a lot of different jobs.
